6x36WS+FC Wire Rope

Brand: Dshing
Model: 6x36WS+FC
Number of strands: 6
Number of cores: 36
Structure: WS
Rope Core: FC

Quantity:



Inquire Add to Basket

Product Description

Product Description

6x36WS+FC Wire Rope

Applications:
6x36WS+FC Wire Ropes are widely used for shaft hoisting, vertical feed balance rope, blast furnace winch, open-pit slope winch, oil drilling, steel rope traction belt conveyor, cableway and ground cable car, excavator, large casting crane, port loading and unloading water conservancy project and tower crane for construction, busy lifting and other important uses, hot steel transfer machine, ship loading and unloading, tugboat, cargo net, salvage of sunken ship, etc.

Datasheet

Wire Diameter	Tension Strength/MPa
	1570		1670		1770		1870		1960
	MBL/KN
D/mm	FC	IWRC	FC	IWRC	FC	IWRC	FC	IWRC	FC	IWRC
12	74.6	80.5	79.4	85.6	84.1	90.7	88.9	95.9	93.1	100
13	87.6	94.5	93.1	100	98.7	106	104	113	109	118
14	102	110	108	117	114	124	121	130	127	137
16	133	143	141	152	150	161	158	170	166	179
18	168	181	179	193	189	204	200	216	210	226
20	207	224	220	238	234	252	247	266	259	279
22	251	271	267	288	283	305	299	322	313	338
24	298	322	317	342	336	363	355	383	373	402
26	350	378	373	402	395	426	417	450	437	472
28	406	438	432	466	458	494	484	522	507	547
30	466	503	496	535	526	567	555	599	582	628

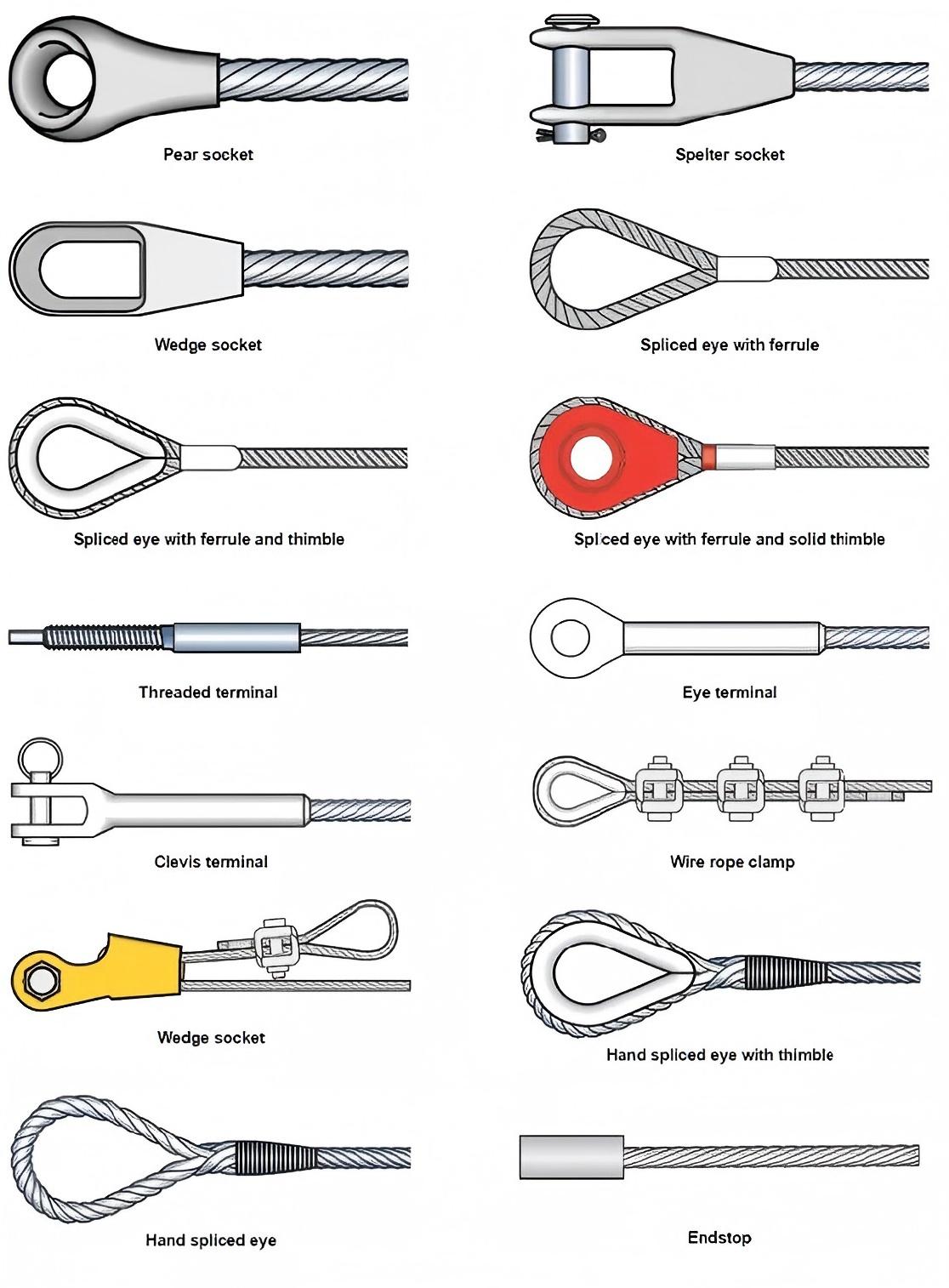

Wire Rope End

DM_20241216163652_001
