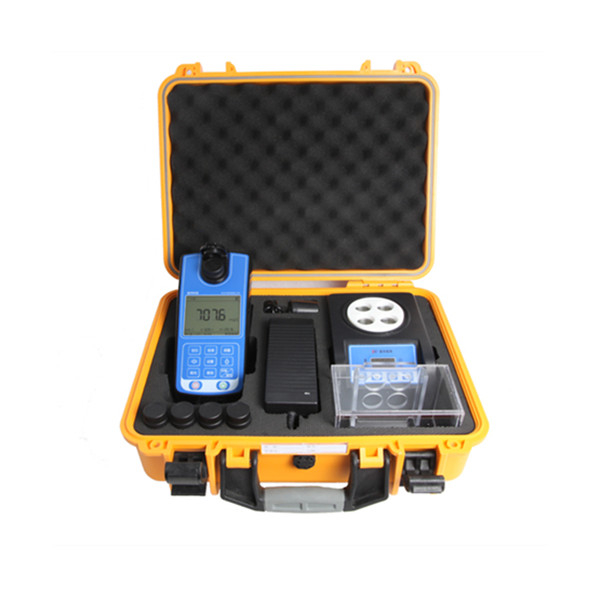

Portable COD (Chemical Oxygen Demand) Meter

This is a detection instrument that can quickly detect COD in various industrial wastewaters and domestic wastewater, which is convenient to carry and make testing accurate and rapid.
  • Model: COD2M
  • Range: 5-10000mg/L
  • Measurement accuracy: ≤±5%
  • Repetition: ≤±5%
  • Optical stability: ≤±0.005A/20min
  • Colorimetric method: 25mm tube colorimetric
  • Number of curves: 5
Quantity:

Product Description

Portable COD (Chemical Oxygen Demand) Meter

This is a detection instrument that can quickly detect COD in various industrial wastewaters and domestic wastewater, which is convenient to carry and make testing accurate and rapid.

Features

1,Professional portable optical path for fast COD detection.
2,Equipped with a portable digestor.
3,Using wide aperture colorimetric tube colorimetry.
4,Data can be stored and uploaded.
5,There is print function, one-button correction function.
6,With a chassis, light and beautiful, shockproof and waterproof.

Specifications
Item COD
Range 5-10000mg/L (segmentation)
Measurement accuracy COD (<300mg/L): ≤ ±10%

COD (>300mg/L): ≤±5%
Repetition ≤±5%
Optical stability ≤±0.005A/20min
Anti-chlorine interference CI-<1000mg/L has no significant effect

CI-<4000mg/L (optional)
Colorimetric method 25mm tube colorimetric
Storage data 5000
Number of curves 5
Display mode Monochrome LCD
Communication Interface USB Interface
Power supply Battery 4AA/LR6 and 8.4V power adapter
Ambient temperature (5 ~ 40) °C
Environmental Humidity Relative Humidity ≤ 85% RH (No Condensation)
Product Model LH-COD2M
Product Name Portable Chemical Oxygen Demand (COD) Rapid Tester

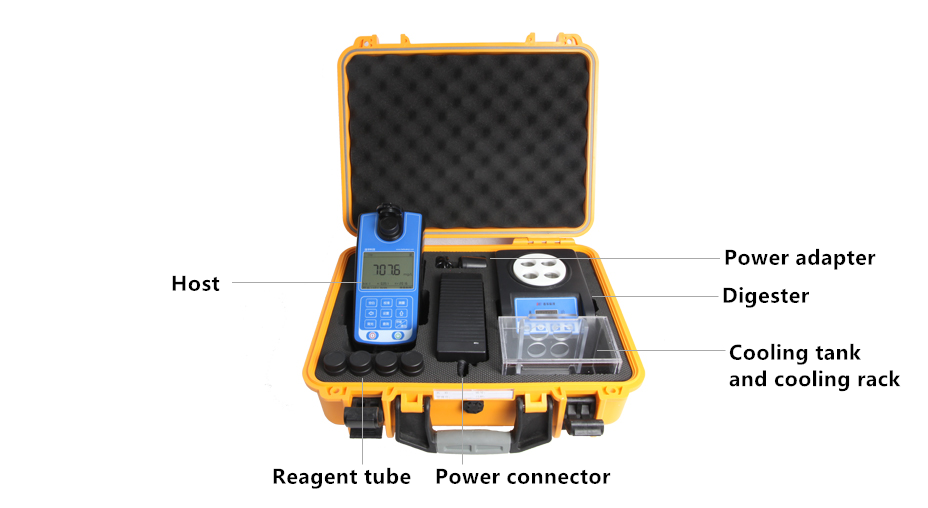

COD

01COD

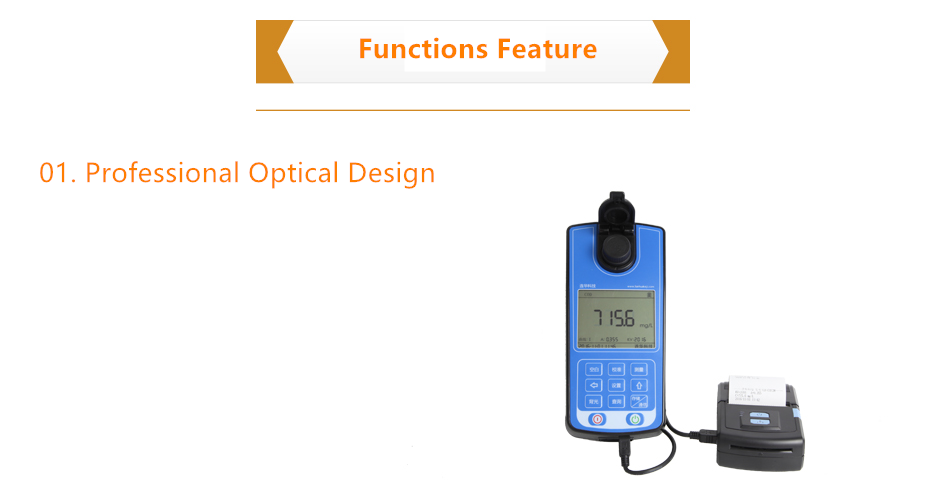

01 Professional Optical Design
Testing convenient, can be concentrated of direct reading,  the measurement results more accurate.

02COD

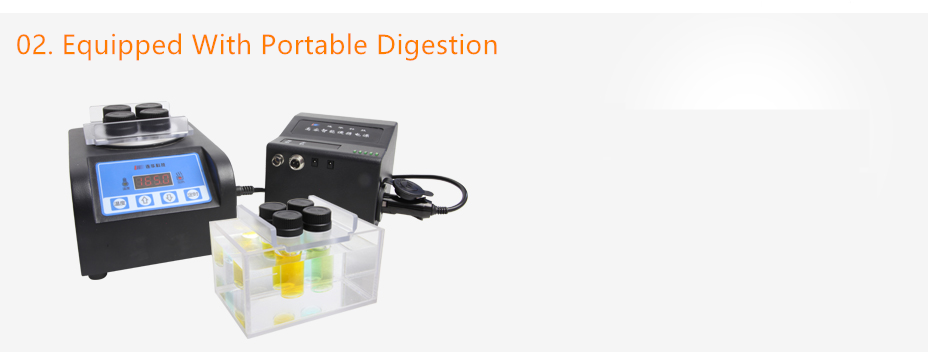

02 Equipped With Portable Digestion
Equipped with a dedicated portable digestion, with digestion tube combination frame, the overall digestion, cooling easy to operate to prevent burns.

03COD

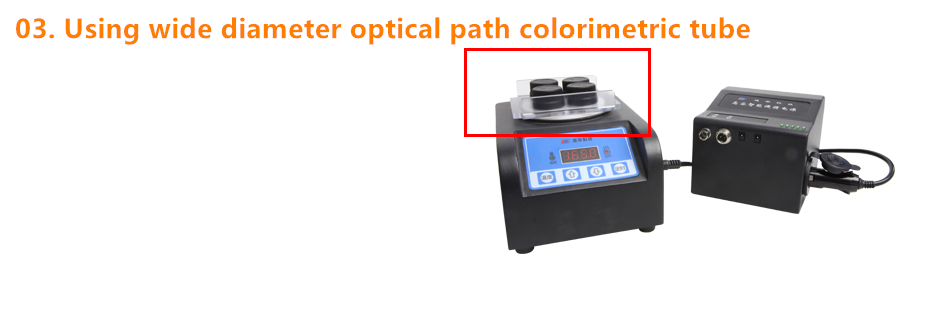

03 Using wide diameter optical path colorimetric tube
Using wide diameter optical path colorimetric tube; integrated with digestion and colorimetric function, to make testing more secure and rapid.

04 COD Meter

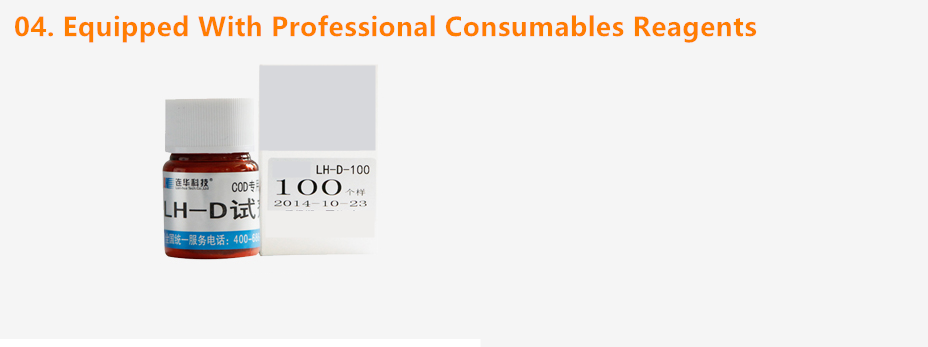

04 Equipped With Professional Consumables Reagents
Equipped with professional consumables reagents, work steps will be very simplified, to the measurement more simple and accurate.

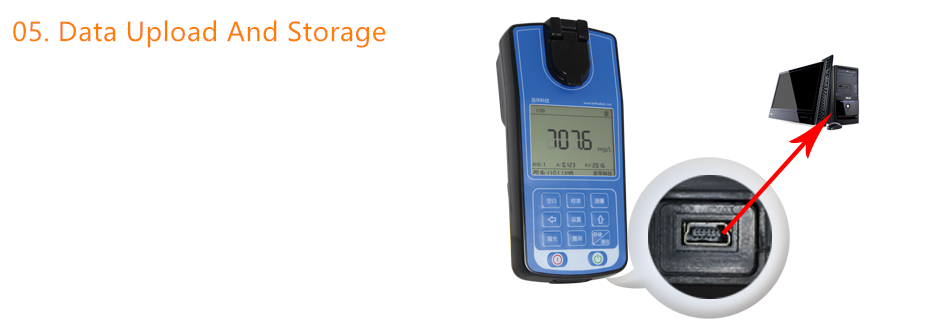

05 COD Meter
05 Data Upload And Storage
With data storage and equipped with USB interface, can view and upload stored data.

06COD Meter

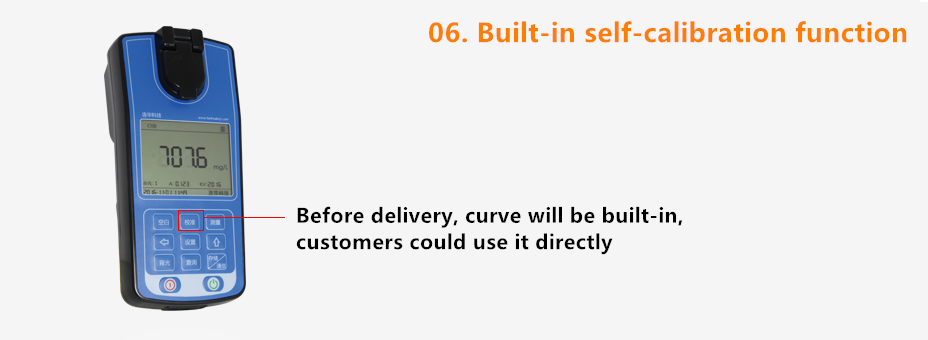

06 Built-in self-calibration function, can calculate and store curve according to standard sample, no need to create the curve manually.


07COD Meter

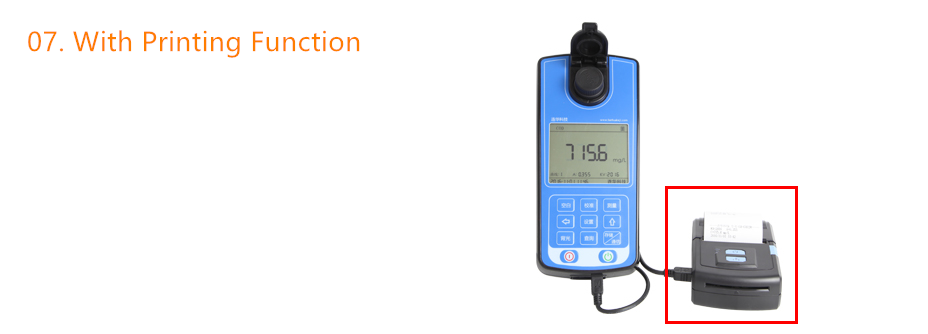

07 With printing function
Can connect with an external printer or upload data to computer to print.

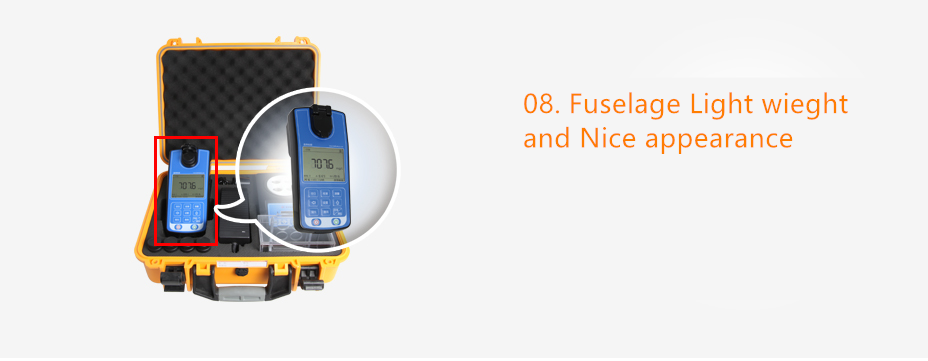

08Chemical Oxygen Demand Meter
08 Fuselage using polymer engineering plastics injection molding, light wight, beautiful, anti-corrosion.

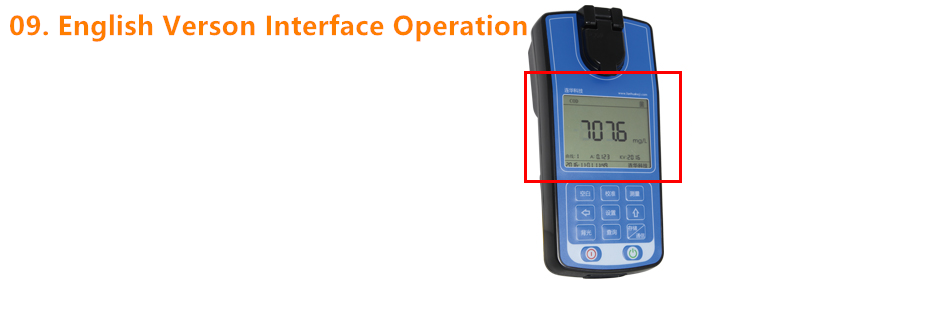

09 Chemical Oxygen Demand Meter

09 English Verson Interface Operation

10 Chemical Oxygen Demand Meter
10 Hight-intensity portable Case, anti-shocking, anti-water, protecting the equipment from damaged.
