TLSM Probe with Two Cameras in different site

Quantity:

Product Description

TLSM Probe with Two Cameras in different site

The camera adopt Sony HD camera, its solution is upto 1200 lines,it has the functions that automatic light-sensitive, automatic focusing,Low intensity of illumination compensation and automatic backlight compensation. The operating temperature of the the probe is from -20 to 70 degree Celsius,waterproofing grade is 10Pa.  High transparent resin lens, would not be broken easily. Equiped with high power highlight LED. Could be connected to the winch conveniently. Diameter: 80mm.

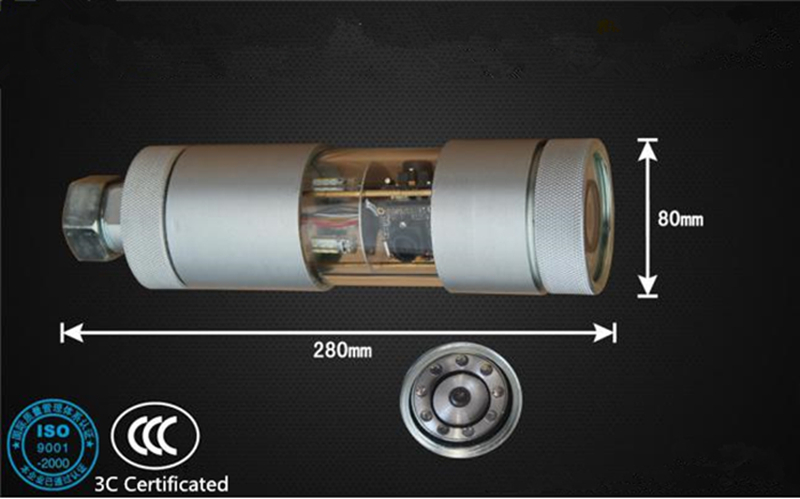

TLSM Probe with Two Cameras in different site-main1

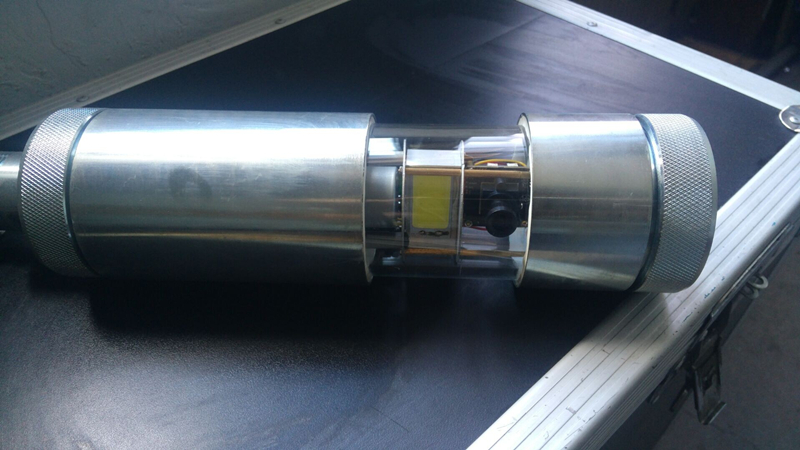

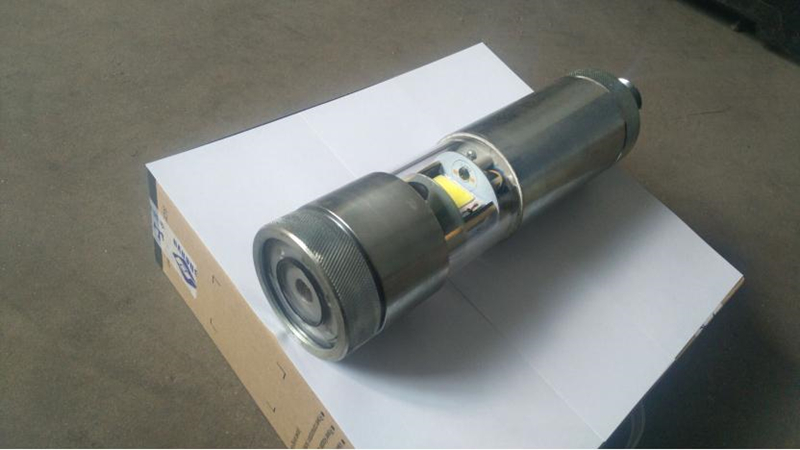

There are two cameras inside the probe. One is at the end of the probe,it is bugeye lens,inbuilt 6-9 pieces LED lights. At the middle of the probe, it is the other one camera-360 degree rotary, inbuilt 81 pieces LED lights,the light The light is more uniform. The light will rotate with camera at same, could inspect the  wall of the well carefully.

TLSM Probe with Two Cameras in different site-main2
TLSM Probe with Two Cameras in different site-main3
