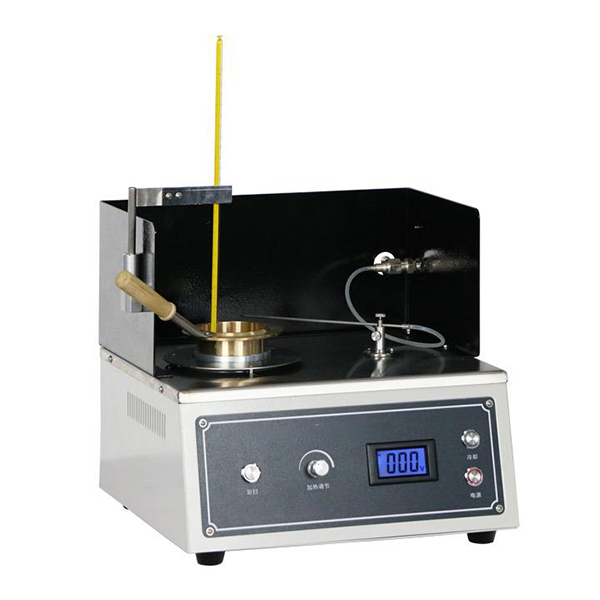

DSHD-3536 Manual Cleveland Open Cup Flash Point Tester ASTM D92

Share to:

DSHD-3536 Manual Cleveland Open Cup Flash Point Tester ASTM D92

Brand: Dshing
Model: DSHD-3536
Type: Manual
Standard: ASTM D92
Power: ≤650W
Range: (-6 to 400) °C
Accuracy: 2°C
Ignition: Coal gas or civil gas

Quantity:



Inquire Add to Basket

Product Description

DSHD-3536 Manual Cleveland Open Cup Flash Point Tester ASTM D92

The DSHD-3536 Manual Cleveland Open Cup Flash Point Tester complies with ASTM D92 and GB/T 3536. It determines the flash and fire points of petroleum products with flash points above 79°C, excluding fuel oils. It is used for lubricant manufacturing quality control, base oil testing in refineries, and detecting fuel contamination in used lubricating oils. Typical samples include engine oils, gear oils, industrial oils, and bitumen. This manual model is the most economical choice, suitable for low-volume or occasional testing where full automation is not required. For higher throughput, semi-automatic model DSHD-3536-1 and fully automatic model DSHD-3536D are also available.

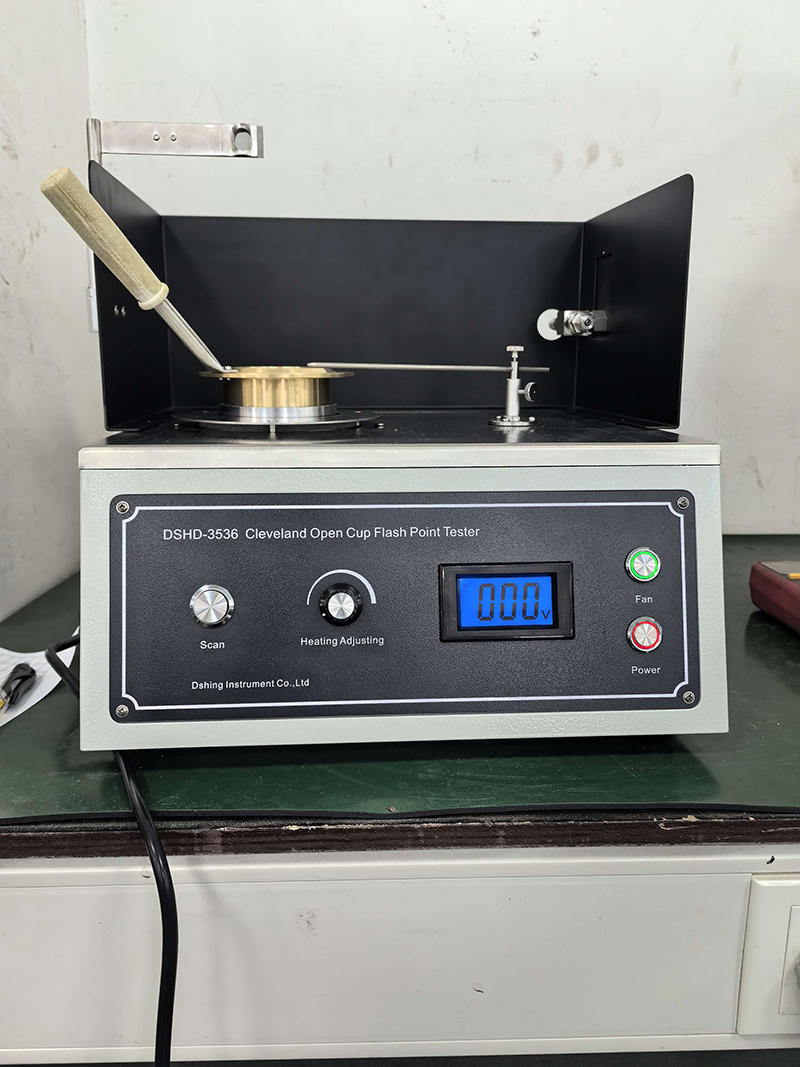

DSHD-3536-front-Dshing

Technical Data Sheet

I. Main technical features

1. It adopts special heating furnace to ensure the safety of test. The heating power is continuously adjustable.It can meet requirements of test.

2. The instrument adopts desktop structure.The stainless steel working table and furnace shell make it beautiful and elegant.

3. The instrument is fully self-contained complete.The operator can do determination as long as connecting with coal gas or other civil gas.

4. It equipped with flame extinguishing cover which accord with requirements of test.

II. Main technical specification and parameters

SN.	Item	Parameter
1	Power supply	AC 220 V±10%, 50 Hz
2	Heating device	The instrument uses quartz tubular furnace for heating. No flame; explosion protective. The heating power can be adjusted from 0 to 600 W continuously.
3	Flame application device	Automatic
4	Thermometer	-6～400 ℃, the graduation scale is 2 ℃. It is in accord with GB/514 “Technical Specification of Thermometer Used for Petroleum Products Test”.
5	Ignition device
5.1	Ignition source	Coal gas
5.2	Aperture of spout	0.6～0.8 mm
6	Ambient temperature	-10 ℃～50 ℃
7	Relative humidity	≤85%
8	Power consumption	Not more than 650 W
