I. Main technical features

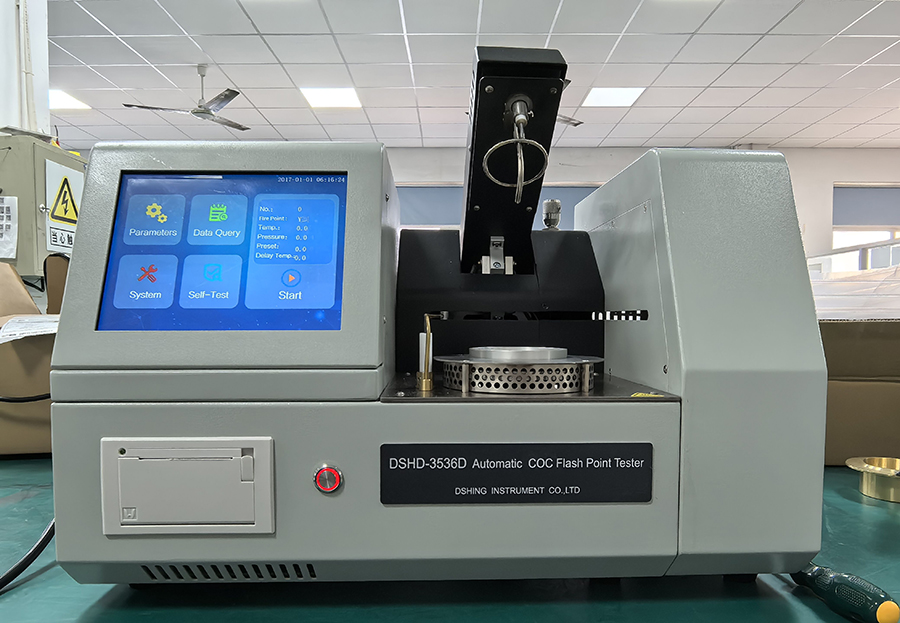

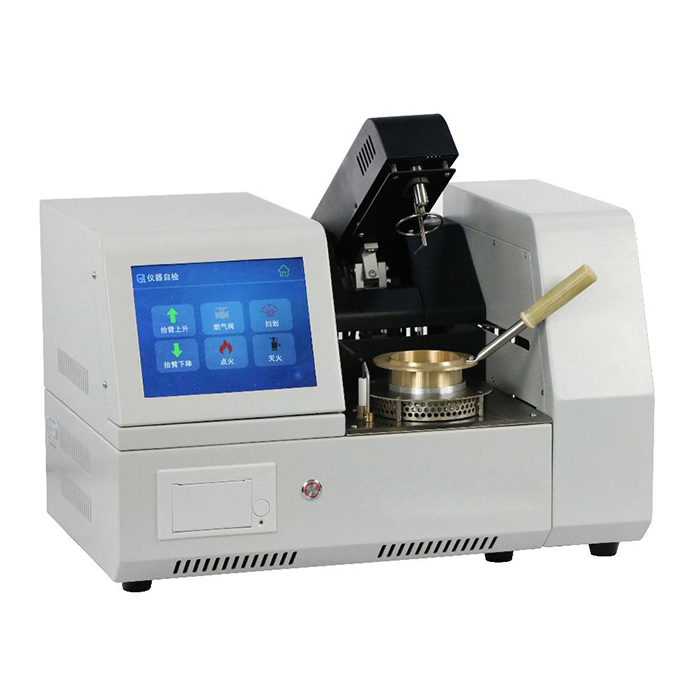

1. This instrument is a kind of fully-automatic instrument wich can do determination for both flash point and fire point.
2. This instrument adopts technology of single chip microcomputer and LCD screen.Full English man-machine dialog interface. It can preset the parameters of expected flash point,sample mark number, atmospheric pressure, test date,etc.It has menu to prompt and input function of guide type.
3. This instrument adopts desktop structure and advanced design.The man-machine interface make it easy to use.And the test result is accurate.It can be widely used in railway,aviation,electric power, petroleum industry and colleges,scientific research institutes,measurement departments to do determination of flash point and fire point for petroleum products.
II. Main technical specifications
| SN. | Item | Parameter |
| 1 | Power supply | AC 220V(-10%～+5%), 50 Hz |
| 2 | Temperature measurement | Temperature measurement |
| 2.1 | Full scale | Room temperature～400℃ |
| 2.2 | Repeatability | ≤4℃ |
| 2.3 | Reproducibility | ≤8℃ |
| 2.4 | Resolution | 0.1 ℃ |
| 2.5 | Accuracy | 0.5% |
| 3 | Temperature rising speed | Conform to GB/T3536 |
| 4 | Flame application | Electronic ignition ; gas flame is about 3.2~4.8 mm in length |
| 5 | Ambient temperature | 10℃~40℃ |
| 6 | Relative humidity | ≤80%; |
| 7 | Total power consumption | Not more than 500 W |
| 8 | Dimension |
|
| 8.1 | When test arm doesn’t raise up | 520mm×360mm×310mm |
| When test arm raised up | 520mm×360mm×420mm |
