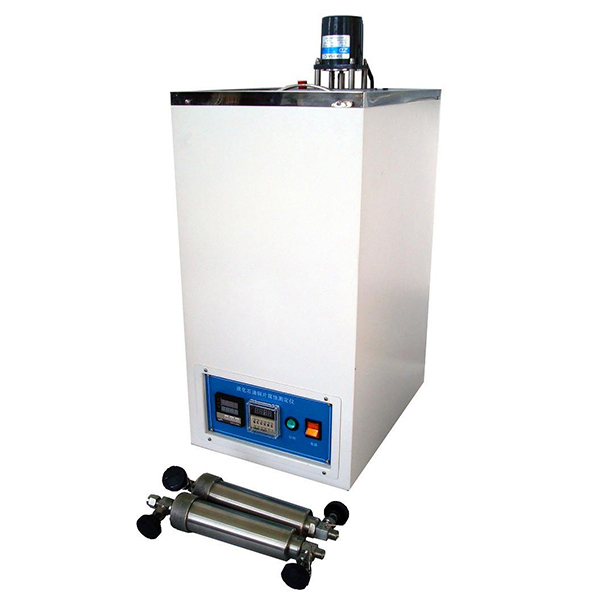

DSHD-0232 LGP Copper Strip Corrosion Tester-New type
Summary
The DSHD-0232 LPG Copper Strip Corrosion Tester is designed according to SH/T 0232 and ASTM D1838, the standard test methods for copper strip corrosion by liquefied petroleum gases. It is suitable for determining the corrosiveness of LPG, propane, butane, and other volatile petroleum products to copper.
This tester is essential for refineries, LPG bottling plants, gas filling stations, and third-party laboratories that need to verify the corrosiveness of LPG to copper and copper-alloy equipment.
I. Standards
SH/T 0232, ASTM D1838, ISO 6251
II. Application
The instrument is used to detect the presence of components in liquefied petroleum gases which can be corrosive to copper.
III. Main technical specifications
1. Power supply: AC220V±10%，50HZ
2. Power consumption: 1500W
3. Temperature range: Ambient～100
4. Temperature precision: ±0.5℃
5. Temperature controller: Digital controller
6. Temperature sensor: Pt100,RTD
7. Test bombs: 2
8. Time-delay range: 0.01s ～ 99h 99min
9. Stirring rate: 1200r/min
10. Working condition: 15～30℃, RH≤85%
11. Control heating power is 1000W, auxiliaty heating power is 400W
IV. Main technical features
1. Digital temperature controller provides stable temperature control.
2. Double-bomb design. It can test two samples at a time. The efficiency is high.
3. The bath adopts stainless steel material. Good corrosion and rust protection.
FAQ
What standard does the DSHD-0232 comply with?
It complies with SH/T 0232, ASTM D1838 and ISO 6251 for copper strip corrosion testing of LPG.
What samples can this tester handle?
LPG, propane, butane, and other volatile petroleum products requiring copper strip corrosion testing.
What is the temperature control accuracy?
±0.5°C, with a Pt100 temperature sensor.
